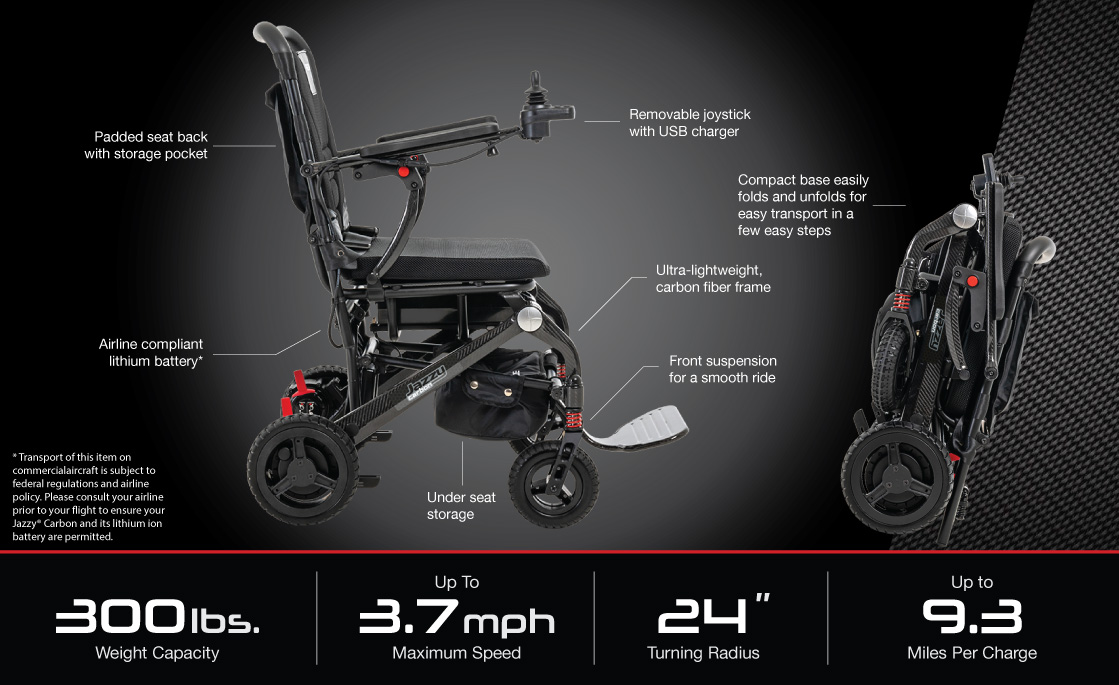

Jazzy Carbon

Pride

Weight Capacity 300 lbs.

Component Weights:

Base: 39.6 lbs.
Battery: 4 lbs.










































































K0899 Power Mobility Device, HCPCS Code not coded by DME PDAC or


does not meet criteria







Weight Capacity 300 lbs.







Turning Radius3 24”







Overall Width3 24”







Overall Length3 37”







Maximum Speed2 Up to 3.7 mph







Ground Clearance3 2”







Front Casters3 7”







Drive Wheels3 8.5” solid







Rear Casters3 N/A







Drivetrain 24v/250W brushless motors







Braking System Regenerative and electromechanical







Suspension Type Front







Standard Seat3 17” x 17” black foam







Seat-to-Floor Range3




20.25” with standard cushion 18.75” without cushion







Per Charge Range3,5 Up to 9.3 miles







Standard Electronics 35A Brushless Micon







Component Weights6




Base: 39.6 lbs. Battery: 4 lbs.







Total Weight 4 43.6 lbs. with batteries







Battery Requirements 24V 12AH (288WH) lithium-ion







Battery Charger 2 amp, lithium-ion off-board







Warranty




Lifetime limited on frame;
1-year limited on electrical control/ lever system, motor/drive system, bearing sleeve and battery
